Horizontal Directional Drilling Machines
Horizontal Directional Drilling (HDD) machines install underground pipelines, cables and conduits without opening a continuous trench along the installation route. Synergy Rigs Kenya supplies horizontal directional drilling machines for water, fibre, power, gas and infrastructure projects. Machine configurations can be matched to crossing length, product diameter, ground conditions, pullback requirements and available site space.
HDD Machine Configurations
Heavy Duty HDD Machines
Used for larger pipelines and longer crossings requiring greater thrust, torque and pullback capacity.
Trailer-Mounted HDD Machines
Provide a transportable drilling arrangement for utility contractors moving between project locations.
Skid-Mounted HDD Machines
Designed for suitable projects where the drilling unit operates from a prepared working position.
Compact HDD Machines
Suitable for smaller utility work and sites where available working space is limited.

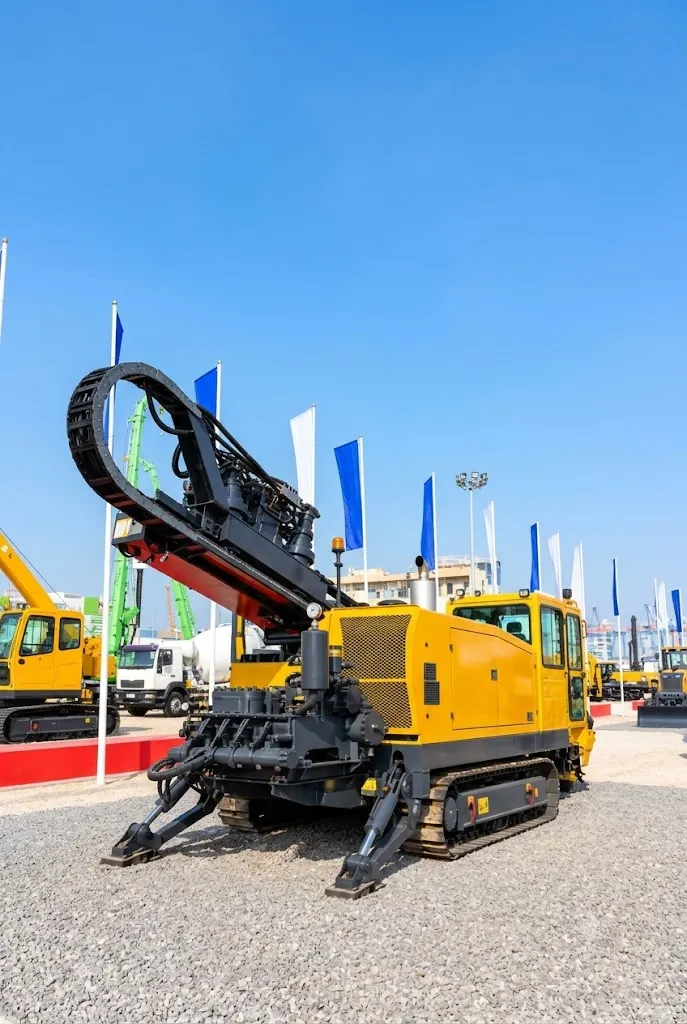

Trenchless Utility Applications
Road, Railway and Waterway Crossings
Higher-capacity machines can support selected crossings beneath major transport routes and natural obstacles.
Fibre and Telecom Networks
Supports trenchless installation of communication ducts and fibre-optic infrastructure.
Gas Pipeline Projects
Suitable HDD configurations can support controlled underground gas-line installation.
Water Pipeline Installation
Used for underground water lines beneath roads, developed areas and other obstacles.
Power and Electrical Conduits
Creates underground routes for power cables and utility conduits.
HDD Drilling Capacity & Bore Control
Successful directional drilling depends on maintaining suitable machine force and bore control throughout the installation. The HDD machine and tooling should work together throughout pilot drilling, reaming and product pullback. Important factors include:
Steering and locating
Pullback capacity
Ground formation
Bore enlargement
Product diameter
Crossing length
Rotary torque
Thrust force
Mud circulation
Features of HDD Machines
Actual specifications depend on the selected HDD model.
Rock-drilling options on suitable machines
Compact and heavy-duty configurations
Locating-system compatibility
Hydraulic thrust and pullback
Adjustable drilling angle
High-torque rotary drive
Guided pilot drilling
Reamer compatibility
Mud-system support
Drill rod system
Why Choose Synergy Rigs Kenya?
HDD Tooling Compatibility
Drill rods, pilot bits, reamers, swivels and supporting equipment can be matched to the selected machine.
Different Machine Capacities
Compact and heavy-duty options can be considered according to installation size and crossing length.
Utility-Focused HDD Equipment
Machine configurations can support water, telecom, electrical, gas and infrastructure installations.
Technical and Parts Support
Equipment specifications and compatible replacement parts can be reviewed before and after supply.
Ground-Specific Drilling Options
Suitable tooling can be considered for soil, mixed ground and harder formations.
Complete Project Equipment Support
Machine, tooling and mud-system requirements can be discussed as one HDD setup.
Frequently Asked Questions
1. When should diamond core drilling be used?
Diamond core drilling is suitable when continuous rock samples are required for geological logging and mineral analysis.
2. What is the advantage of wireline core drilling?
Wireline systems allow the inner core barrel to be retrieved without removing the complete drill string.
3. What affects core sample recovery?
Formation conditions, bit selection, core barrel design and drilling parameters can influence sample recovery.
4. Can core drilling rigs drill hard rock?
Yes. Diamond core drilling systems are commonly used for hard-rock geological and mineral exploration.
5. What determines core drilling depth?
Depth depends on rig capacity, core size, drill rods, recovery system and geological conditions.
6. Which core size should be used for exploration?
Core size depends on geological objectives, sample requirements, drilling depth and selected core drilling system.
7. What affects core drilling rig price?
Price depends on drilling capacity, core recovery system, hydraulic configuration, drill rods, core barrels and accessories.
8. What information is needed before ordering a core drilling rig?
Provide target depth, required core diameter, formation conditions, recovery method and project location.
